CONTEC CMS50D Medical Finger Pulse Oximeter

The CONTEC CMS50D finger pulse oximeter is a high-quality device that meets CE certificate compliance standards and medical standards. The oximeter can monitor not only heart rate (pulse) but also blood oxygen saturation.

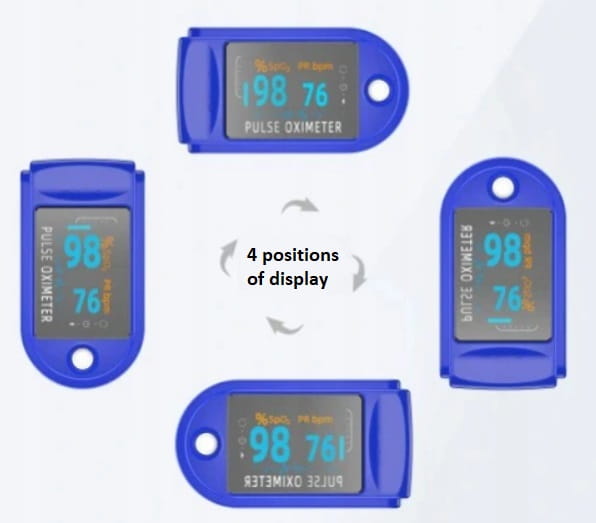

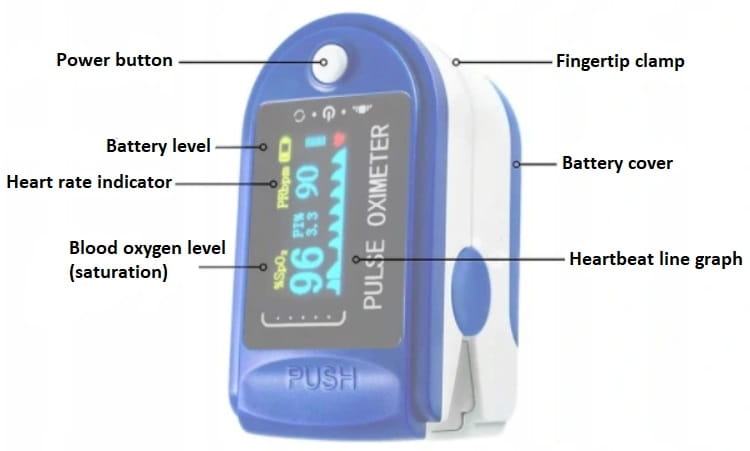

The device is small and portable, as well as comfortable and easy to use thanks to its clear display, which features 6 display modes with bar and line graphs. The oximeter also has an automatic shutdown function 5 seconds after removal from the finger, preventing unnecessary battery consumption. When battery replacement is needed, the device indicates this with a low voltage warning, allowing timely replacement and avoiding issues related to low battery.

The CONTEC CMS50D finger pulse oximeter complies with the required medical device standards, confirmed by the manufacturer's declaration of conformity and the CE certificate issued by TÜV SÜD PRODUCT SERVICE GMBH.

Technical specifications of the CONTEC CMS50D oximeter:

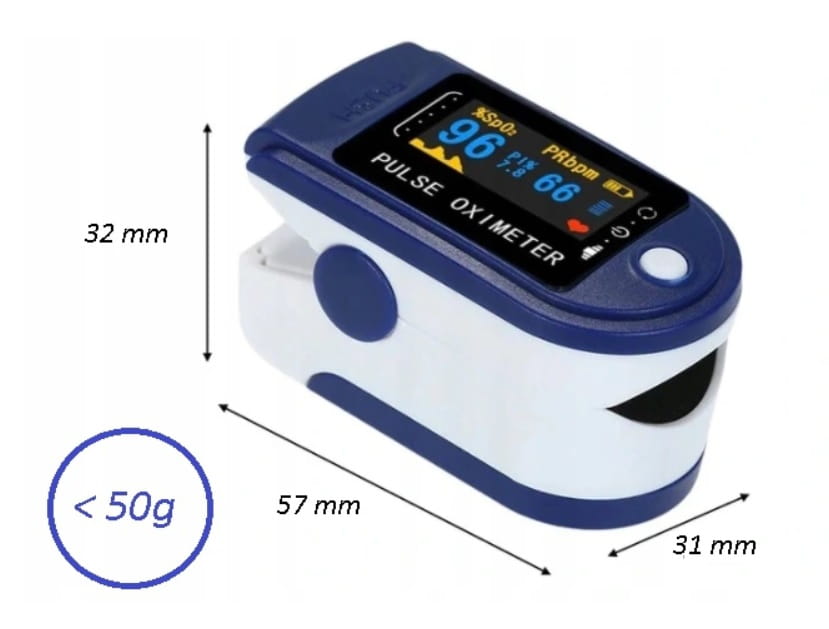

• Dimensions: 57 x 31 x 32 mm;
• Device weight: approximately 50 g (with batteries);

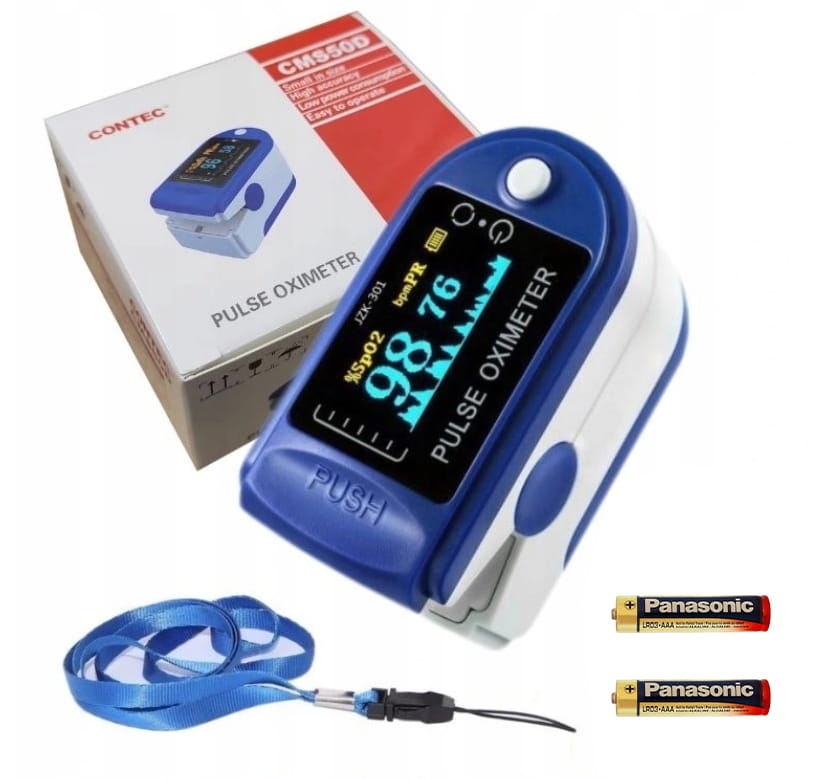

• Power supply: DC 2.6 V - 3.6 V, 2 AAA batteries (included);
• Power consumption: less than 30 mA;
• Battery operating time: two batteries can operate continuously for 20 hours; theoretical number is 36 hours;
• Durable and high-quality device from the renowned brand CONTEC MEDICAL SYSTEMS CO., LTD;
• CE certified and compliant with all related certificate standards and norms;
• Compatible with medical equipment directives and standards: 93/42/EEC, 2007/47/EEC, IEC60601-1:2012, IEC60601-1-2:2014, IEC 60601-1-6:2013, IEC 60601-1-11:2015, IEC 62366-1:2015, ISO 80601-2-61:2017, IEC 62304:2015;
• CE certificate number: G1 050972 0050 Rev.04;
• Warranty: 12 months;

Measurement parameters:

• SpO2 measurement range: 0% ～ 100% (1% resolution);
• Accuracy: 70% ～ 100% ： ± 2%, below 70% undefined;
• PR measurement range: 30 beats per minute - 250 beats per minute (1 bpm resolution);
• Accuracy: ± 2 beats per minute, or ± 2% (whichever is greater);
• Measurement performance under low perfusion conditions: SpO2 and heart rate can be displayed correctly when the perfusion index is 0.4%. SpO2 error ± 4%, heart rate error ± 2 bpm or ± 2% (whichever is greater);
• Ambient light resistance: Deviation between measured value under artificial or indoor natural light and in darkness is less than ± 1%;
